Accurate identification, fast selection

Check for defects, check for dimensions, check for chromatic aberrations!

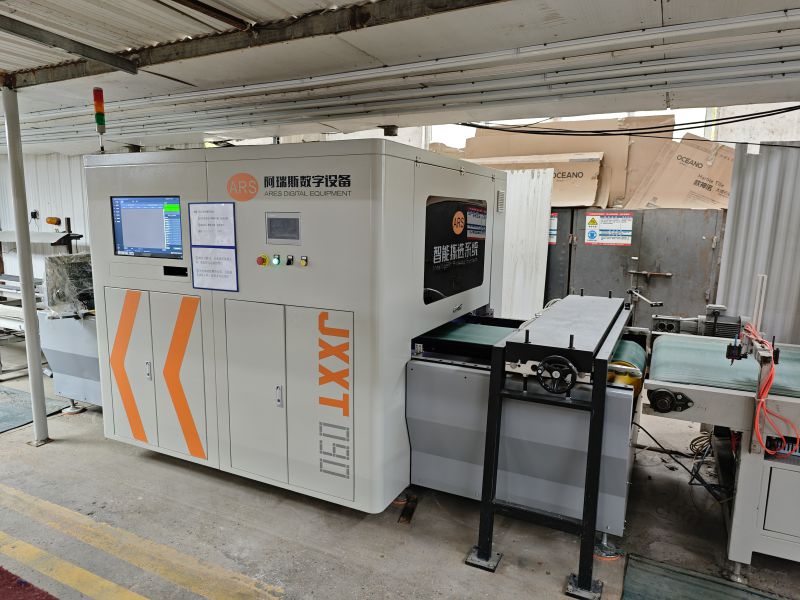

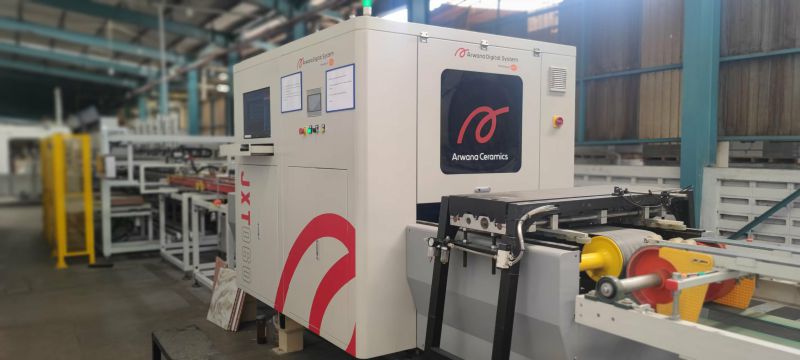

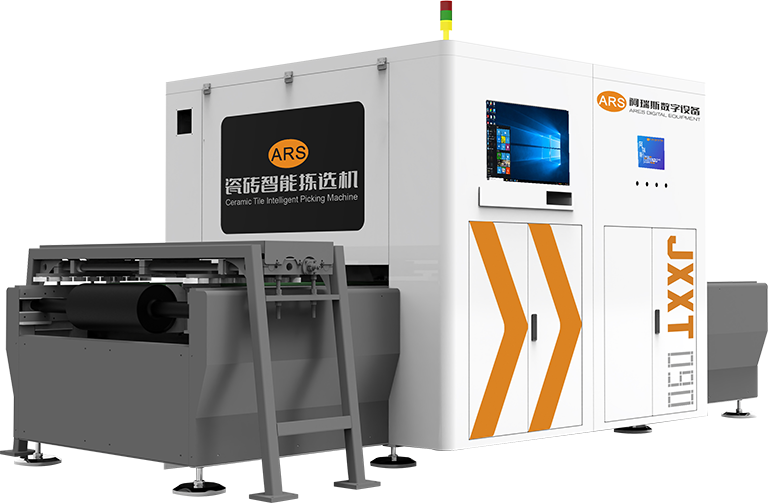

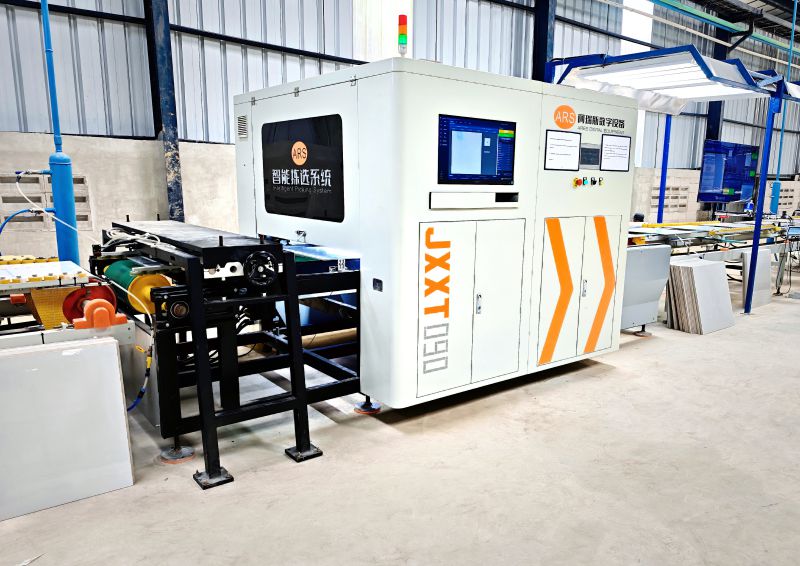

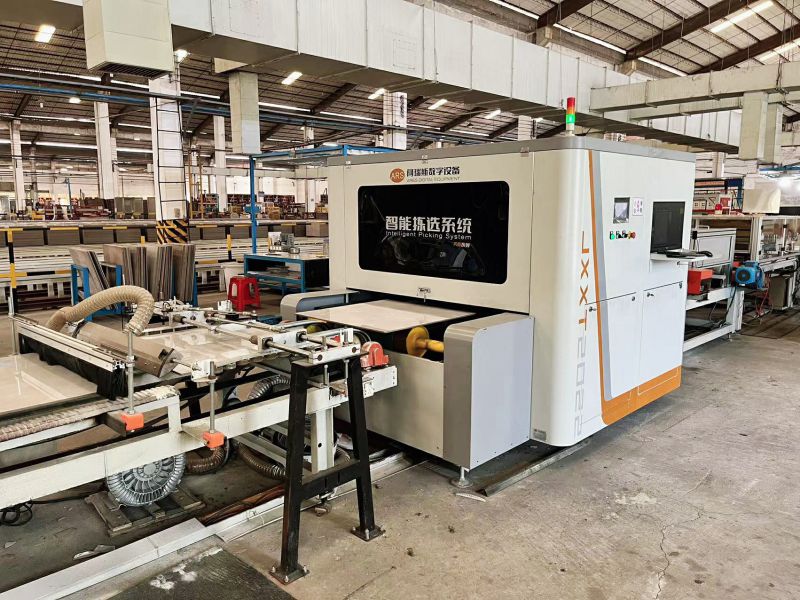

Ares independently developed tile intelligent sorting machine, using the original intelligent vision algorithm, high-precision image acquisition system and high-speed accurate image processing algorithm, can quickly and accurately locate the defects of tiles, and mark them.

The main functions include: tile defect detection, tile color number sorting function and other functions.

The device adopts AI intelligent learning algorithm, which can learn independently, making the system smarter and smarter. According to the quality control requirements, unified inspection standards, intelligent and high-precision selection of each tile, and accurate classification, output statistical data, to avoid the wrong detection due to manual identification differences, missed detection and other situations. It not only improves the quality and stability of the products, further realizes the intelligence of the factory, but also effectively reduces the labor intensity of workers and alleviates the labor pressure.

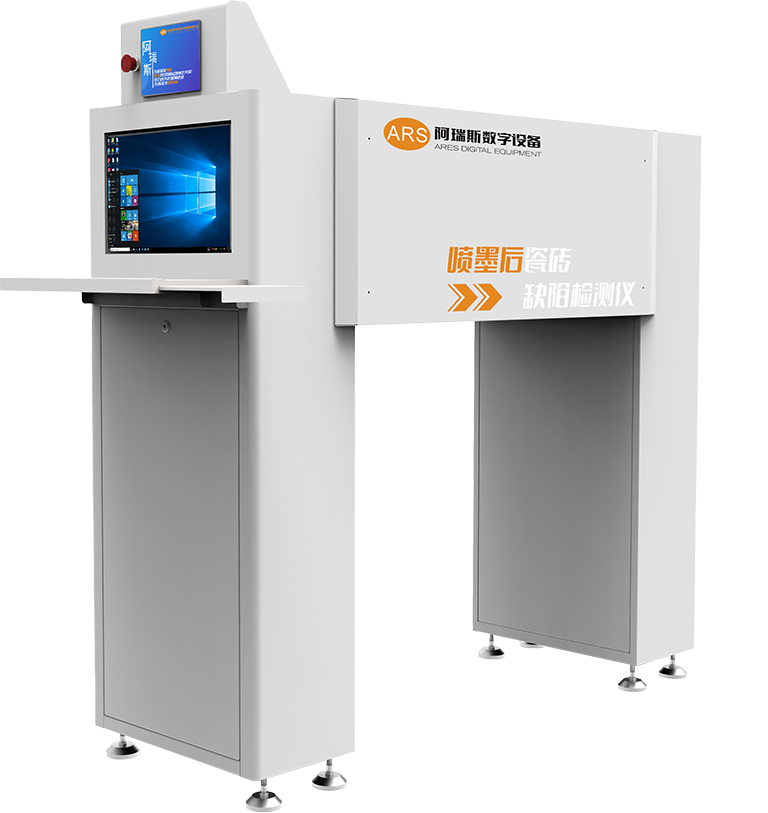

Ink-jet Surface Defect Detector, using the latest visual system to automatically detect the surface of ceramic tile.Through the original visual information extraction algorithm, and the addition of AI intelligent algorithm for ceramic surface defects (such as: pull line, ink drop,  edge and corner collapse, etc.) high-speed precise positioning and the intelligent feedback mechanism of the tag.

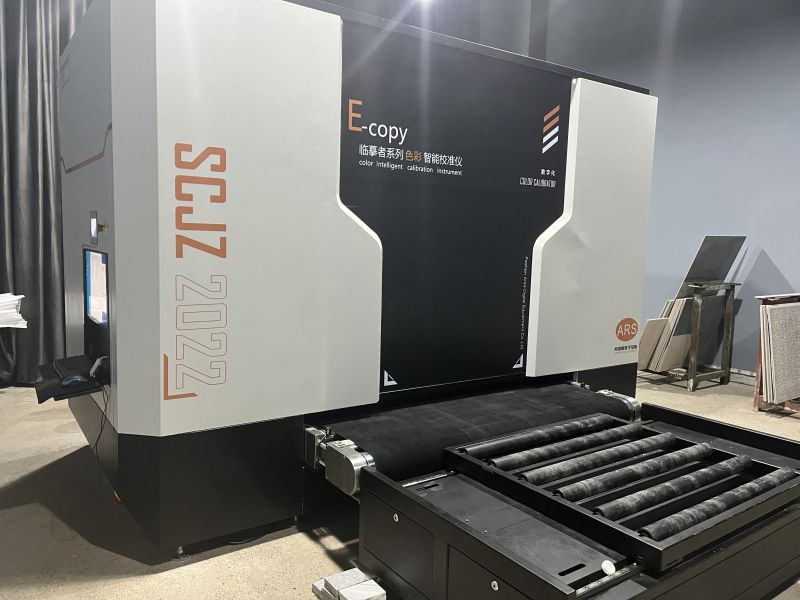

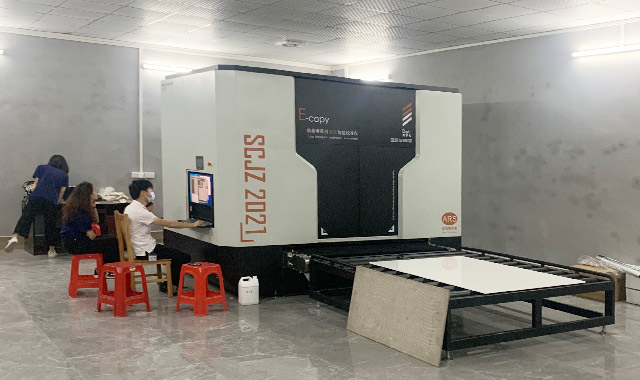

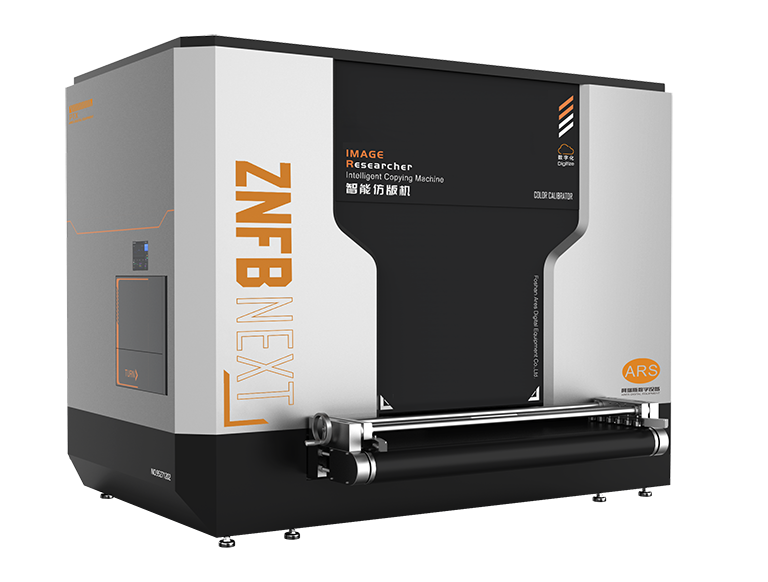

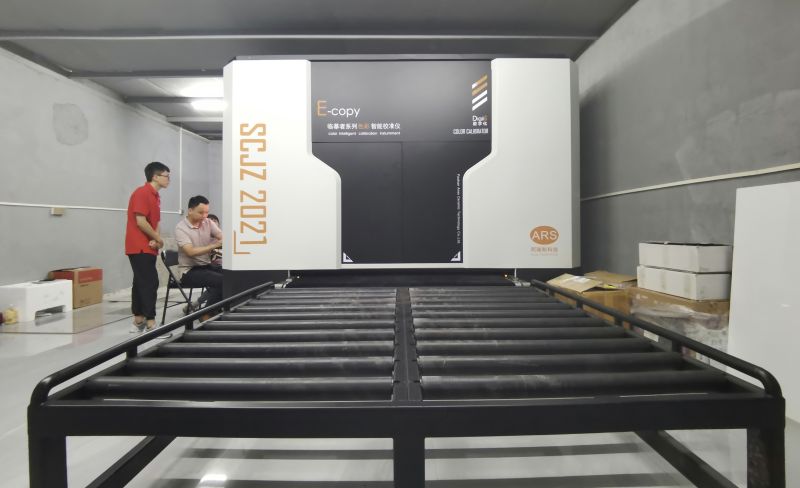

Using the image visual intelligent acquisition system imported from Germany, the tile design is effectively digitized.This process combines AI image intelligent acquisition and industrial computer application technology to automatically process design and color information. It is the world's first initiative with independent intellectual property rights and national invention patents.AI intelligence is applied to product development and re-production, so that factories can achieve fast proofing, fast version matching, and fast production transfer in production.Reduce the time for designers of ceramic enterprises to develop color matching, color tracing, and imitation, and efficiently restore them to inkjet printing files, improve work efficiency and improve quality, and gain a good reputation in the ceramic industry.

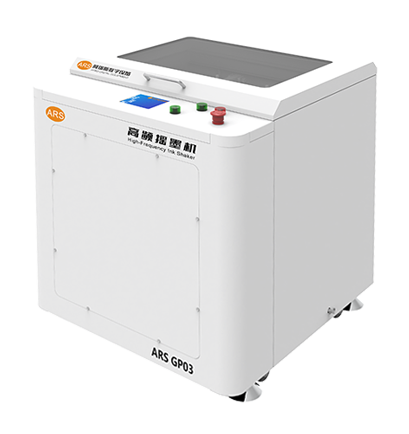

1. The machine mainly adopts the principle of continuous high-frequency vibration shaking ink, so that the precipitation ink in a short time to achieve effective and uniform mixing.

2. There are multiple time options, automatically stop running when the time is up.

3. The machine is equipped with safety interlock to prevent the door from being opened when the machine is running. And the door and power interlock, can realize the door power off.

4. High speed and thorough mixing of ink barrel in ink shaking machine can homogenize ink within 30 seconds at the soonest, thus greatly improving the efficiency and time of ink shaking.

5. Capacity: 20L (4 bottles X5L)

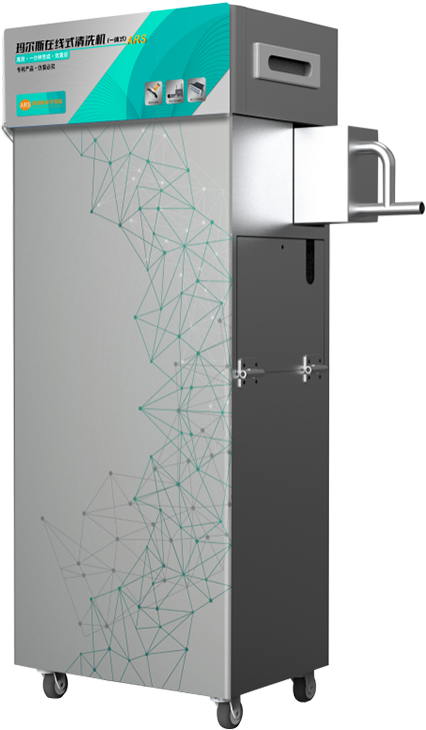

Sprinkler head does not need to be removed, cleaning is more convenient, cleaning can be completed in two minutes.

On-line sprinkler cleaning, supporting the use of sprinkler cleaning liquid and cleaning agent, accurate treatment for sprinkler head.

Effectively solve:

Pull wire, skew needle, plug, oblique spray and other problems, simple operation, easy to start.

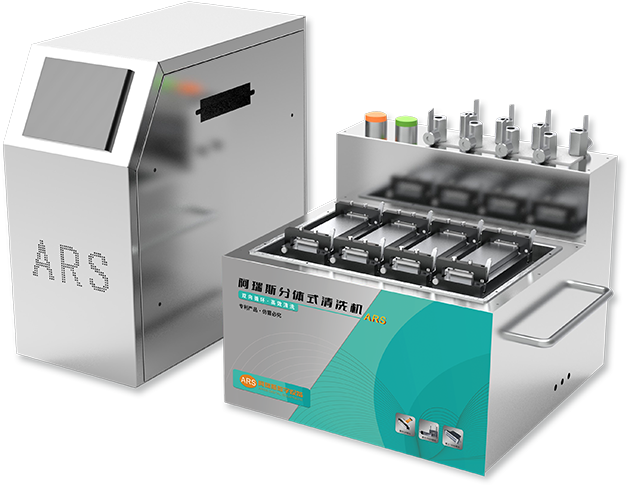

Split design for easy portability Automatic two-way cycle cleaning, effectively solve the blockage of the cable Base mode cleaning.

Effectively solve:

Slanted spraying and pulling wire Double cleaning liquid circulation, to prevent the worsening of washing. Adjustable vibration power, using different powers for different nozzles, to avoid excessive power to wash the nozzles, and too small power to wash the wire.

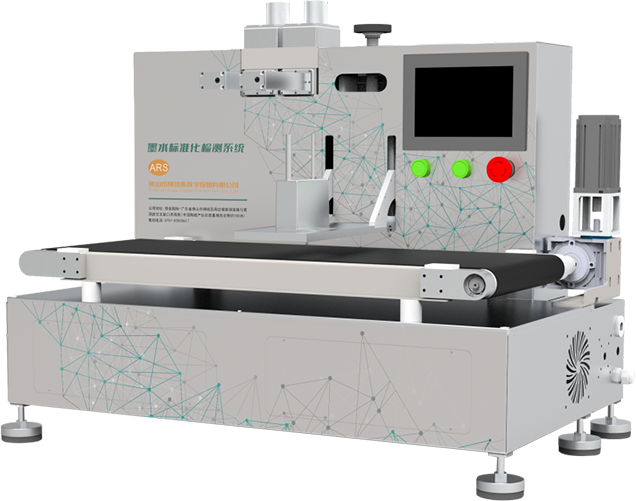

Dual-color printing, Dimatix 1024 nozzle.

Test the stability of a single ink at different times.

Test the effect of ink on the tile surface.

Can test the contrast effect of different ink manufacturers under the same condition.

Dual system, dual color Dimatix 1024 nozzle, resolution 400Dpi, speed adjustable, quick ink replacement.

The minimum amount of ink should be 200ml.
